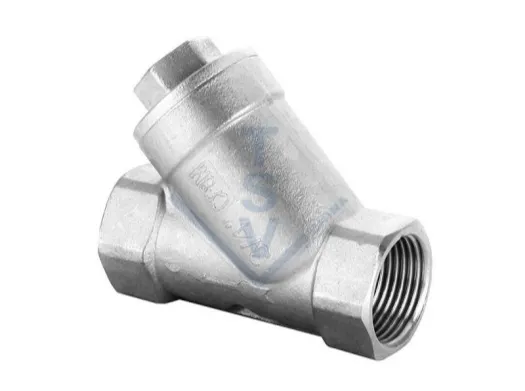

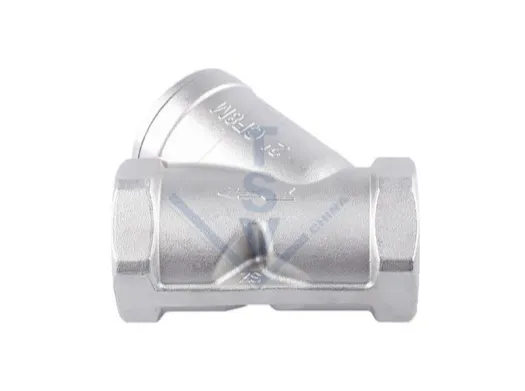

SS SW/FNPT/BSPT Y Strainer

Products Details:

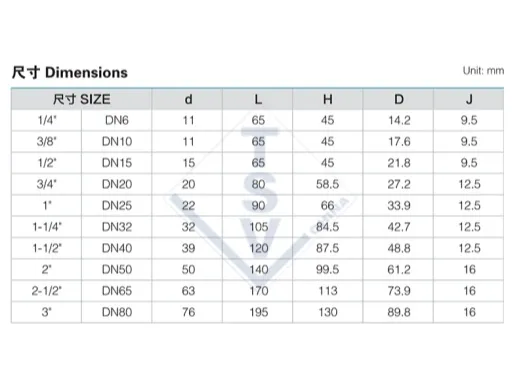

Size: 1/4"~3"(DN6~DN8)
Working Pressure: 800WOG(PN50)

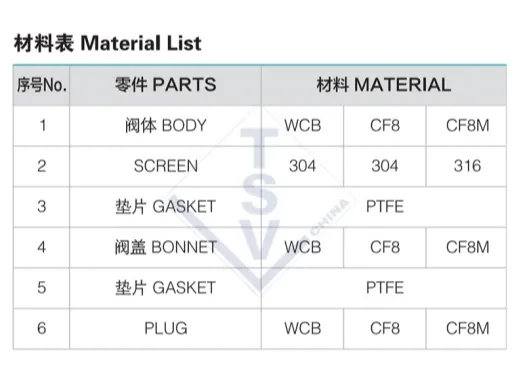

Material: WCB, CF8, CF8M, CF3, CF3M
Working Temperture: -20℃~180℃
Investment Casting
Thread End: ASME B1.20.1(NPT); DIN 259/DIN 2999; BS21; ISO 288-1; ISO 7-1
Socket Werd End: ASME B16.11

Key Features:

1. Stainless Steel Construction:

   • Made from high-grade stainless steel (e.g., 304 or 316), providing superior corrosion resistance and durability.

   • Ideal for use in aggressive environments, such as chemical processing, marine applications, and food and beverage industries.

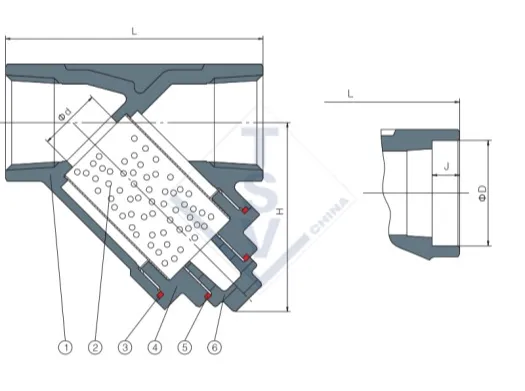

2. Y-Shaped Design:

   • Features a Y-shaped body that allows for efficient filtration with minimal pressure drop.

   • The design provides easy access to the filter screen for cleaning or replacement.

3. Connection Types:

   • Socket Weld (SW): Provides a strong, leak-proof connection for high-pressure systems.

   • Female National Pipe Thread (FNPT): Offers easy installation in threaded piping systems, commonly used in North America.

   • British Standard Pipe Taper (BSPT): Suitable for threaded connections in European and Asian markets.

4. Filtration Mechanism:

   • Utilizes a stainless steel mesh or perforated screen to capture debris, rust, and other solid particles from the fluid.

   • The screen is available in various mesh sizes to suit different filtration requirements.

5. Applications:

   • Commonly used in chemical processing, oil and gas, water treatment, food and beverage, and pharmaceutical industries.

   • Suitable for filtering liquids, gases, and steam in high-pressure, high-temperature, and corrosive environments.

6. Advantages:

   • Protects downstream equipment (e.g., pumps, valves, and meters) from damage caused by debris.

   • Reduces maintenance costs and downtime by preventing clogging and wear.

   • Durable and reliable in extreme operating conditions.

   • Easy to install, clean, and maintain.
