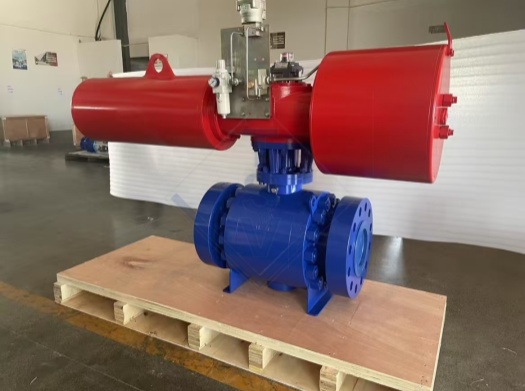

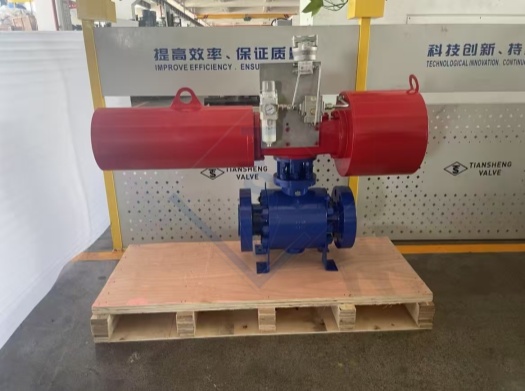

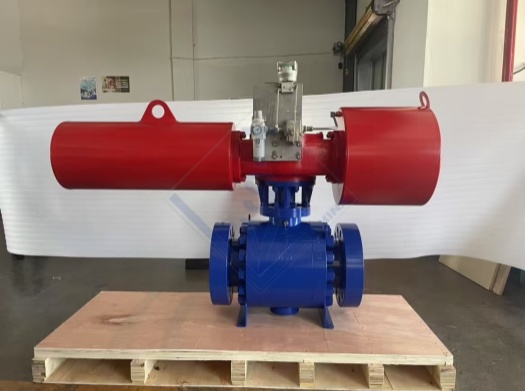

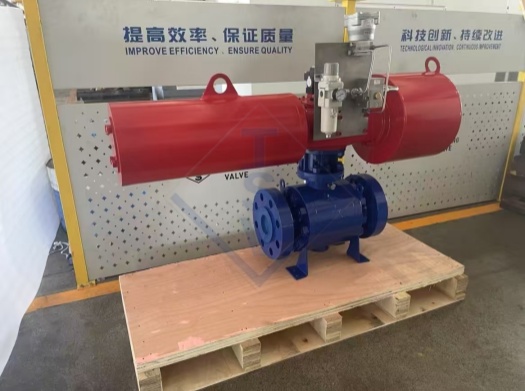

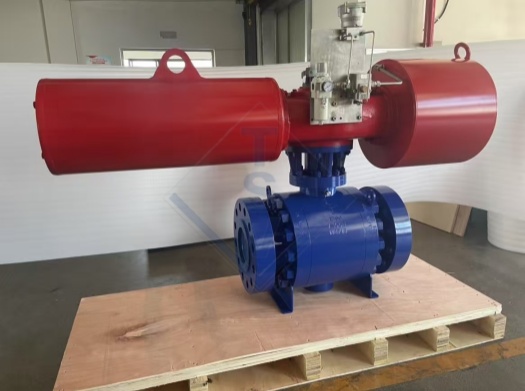

A trunnion-mounted ball valve designed for fail-safe emergency isolation in critical pipelines. It integrates a mechanical trunnion support system (anchoring the ball at top and bottom) with rapid-acting actuation to ensure immediate shut-off during emergencies (e.g., leaks, overpressure, or fire).
Request a QuoteProduct Details
Key Features:
-
Trunnion Design:
-
Dual stem support reduces operating torque and seals reliably under high differential pressure (API 6D Class 150–2500).
-
Blowout-proof stem prevents stem ejection under extreme conditions.
-
-
Emergency Shut-off (ESD) Function:
-
Spring-return or pneumatic/hydraulic actuator for Fail-Close (FC) operation (per IEC 61508 SIL2/SIL3).
-
Fire-safe construction (API 607/ISO 10497 certified) with secondary metal seals.
-
-
Applications:
-
Oil & gas pipelines.
-
Chemical plants (hazardous fluid isolation).
-
LNG terminals (cryogenic service to -196°C).
-
Technical Specifications:
| Parameter | Detail |
|---|---|
| Size | 4", 8" |
| Pressure | Class 1500LB |
| Actuation | Pneumatic (single/double-acting) |
| Seat Test | Zero leakage per API 598 (bubble-tight shutoff). |
| End Connections | Flanged Raise Face. |
Operational Advantages:
-
Fast Closure: ≤2 seconds for full bore shut-off (critical for ESD systems).
-
Low Torque: Trunnion design cuts torque by 30–50% vs. floating ball valves.
