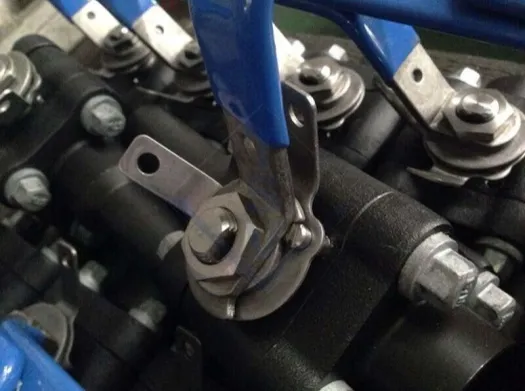

NPT Floating Ball Valve
Size & Pressure : 150# -2500# DN15-DN80
1. 1/4" turning for opening or closing.
2. Blow out proof stem,fire safe and static resistance safety
3. Full pore or reduced port
4. Mounting flange acc. to ISO5211
5. Screwed ends (NPT) to ANSI/ASME B1.20.1
Request a QuoteProduct Details
TSV NPT Forged floating ball valves have two structures. 2-pc and 3-pc design, male or female threaded ends, RPTFE, DERLIN, NYLON and PEEK seats. Different materials for seats, gaskets and packing may be chose acc. to different using conditions
1. 1/4" turning for opening or closing.
2. Blow out proof stem,fire safe and static resistance safety
3. Full pore or reduced port
4. Mounting flange acc. to ISO5211
5. Screwed ends (NPT) to ANSI/ASME B1.20.1
