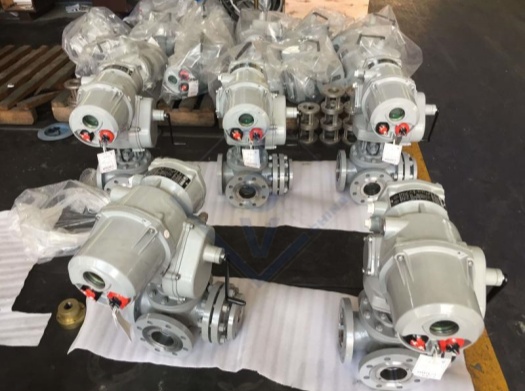

3-Way Ball Valve with Manual and Electric Actuator

Key Specifications:

• Materials: WCB, stainless steel 304, 316 (CF8, CF8M)
• Pressure: 150LB, 300LB and 600LB
• Temperature range: -20 to 350°C
• Connection:RF
• 3-way ball valve (L-type 3-way, T-type 3-way and flange)
• Operating: manual and electric actuator
• Suitable medium: water, oil, air and some corrosive liquid
• Size: 1/4 to 15 inches

Key Features:

1. 3-Way Configuration:

   • Flow Diversion and Mixing: The three-way design allows for the diversion of flow between two different paths or the mixing of flows from two sources into one outlet, making it suitable for complex piping systems.

   • Versatility: Ideal for applications requiring flow switching, blending, or bypass operations.

2. Manual Actuator:

   • Ease of Use: The manual actuator provides simple and direct control over the valve position, making it easy to operate in situations where automation is not required.

   • Reliability: Manual operation ensures functionality even in the absence of power, providing a reliable backup option.

3. Electric Actuator:

   • Automated Control: The electric actuator enables remote and automated operation, enhancing efficiency and reducing the need for manual intervention.

   • Precision: Offers accurate positioning and control of the valve, ensuring optimal flow regulation.

   • Integration: Compatible with various control signals (e.g., 4-20mA, 0-10V) for seamless integration into different control systems.

4. Ball Valve Design:

   • Durability: Constructed with robust materials to ensure long-lasting performance in demanding environments.

   • Low Maintenance: Simple design with minimal moving parts reduces the need for frequent maintenance.

   • Leak-Proof: Provides a tight seal, minimizing the risk of leaks and ensuring reliable operation.
