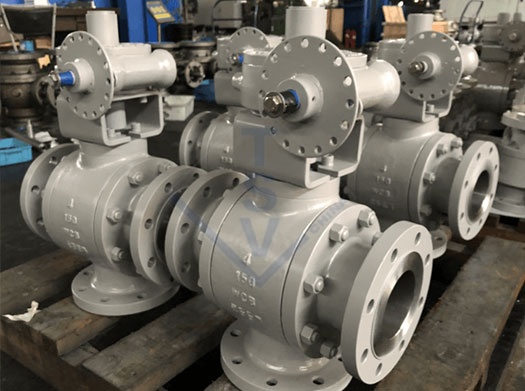

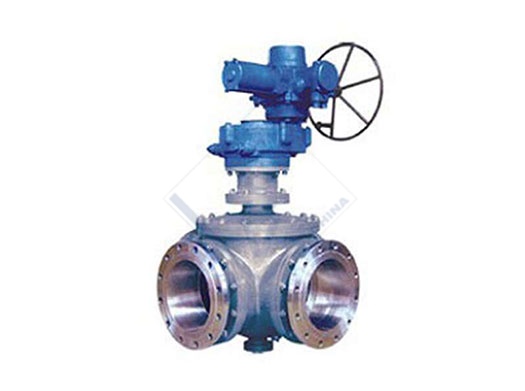

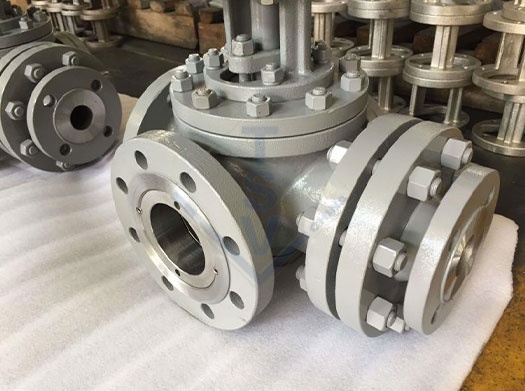

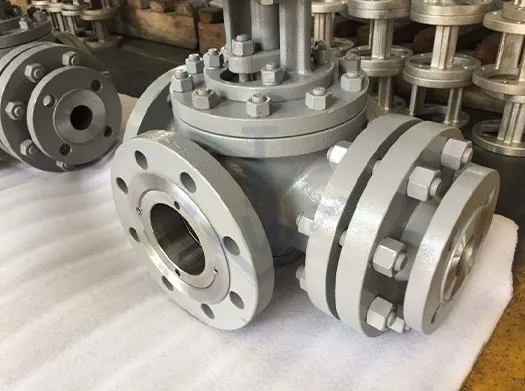

3-Way Ball Valve with Soft Seat

The Three Ball valves are available in type T and type L. T type can make three orthogonal pipelines interconnected and cut off the third channel, and play the role of diversion and confluence. The three-way ball valve type can only connect two orthogonal pipelines, can not maintain the interconnection of the third pipeline at the same time, and only plays a distribution role.

Three-way ball valves are widely used kinds of pipeline. They have three ports. They are commonly made such that flow coming in at one port can be directed to either the second port in one position or the third port in another position or in an intermediate position so all flow is stopped.

According to the structural forms,the valves include one-piece type,two-piece type and three-piece type flanged ball valves,wafer flanged ball valves,and some butt-welding and socket welding ball valves

Key Specifications/Special Features:
Body materials: WCB, CF8, CF8M, CF3 and CF3M
Ball materials: WCB, CF8, CF8M, CF3, CF3M and buffing
Seal ring materials: PTFE and PPL
Body rating: ANSI class 150 to class 300, PN1.6 to 2.5mPa
Body sizes: 1 inch (15A) or 10 inches (150A)
Fluid temperature: -29 to 300°C
Connection: RF
Seat leakage: tight shut-off
Types: carbon steel ball valve, stainless steel ball valve, alloy steel ball valve, forged steel ball valve, pressure seal ball valve and bellows sealed ball valve
Actuators:
PA00RA/PX00RA: pneumatic cylinder

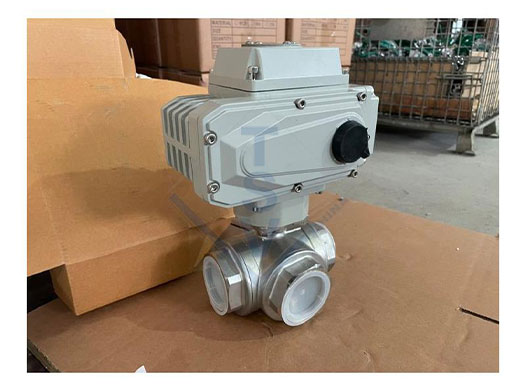

EQ00RA/EK00RA: solid state electronic
Used to switch over mix and divides flow of corrosive or non-corrosive liquid gas or powder mediums
Opening and closing smooth flow channel effects less pressure loss making operation quite labor-saving and easy maintenance
Five types of flow direction to meet various technological requirements
Can handle air and electric operation
