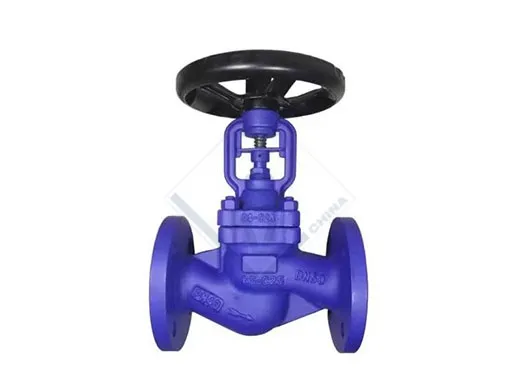

ANSI Flanged Bellows Globe Valve

Key Features:

Type: J41H (W) (Y)
Pressure: 150 to 600lb
Size: 2 to 24-inch
Materials: carbon steel and stainless steel
Design and manufacture: ANSI B 16.34 BS1873
Face to face/end to end: ANSI B16.10
Flange dimensions: ANSI B16.5
Butt welding dimensions: ANSI B16.25
Pressure temperature rating: ANSI B16.34
Inspection and test: API598

Special Features:
Features:
Reasonable structure, reliable real, double durable metal bellow seal design to assure no leakage and safer factory facility.
Seal surface is build-up welding with Co hard alloy, it has characteristics of nice abrasion resistance, nice corrosion resistance, nice anti-scuffing properties and long life.
Stem shows lifting position visually
Part material, flange and butt weld and dimension may be selected according to current operating condition and user's requirement, so that meeting the requirements of various engineering.
Type: J41H (W) (Y)
Pressure: 150 to 600lb
Size: 2 to 24-inch
Materials: carbon steel and stainless steel
Design and manufacture: ANSI B 16.34 BS1873
Face to face/end to end: ANSI B16.10
Flange dimensions: ANSI B16.5
Butt welding dimensions: ANSI B16.25
Pressure temperature rating: ANSI B16.34
Inspection and test: API598

Applications:

• Chemical and Petrochemical Plants: For handling corrosive and toxic fluids.

• Power Generation: In steam and condensate systems.

• Pharmaceutical and Food Industries: Where hygiene and leak-tightness are critical.

• Oil and Gas: For high-pressure and high-temperature applications.

Advantages:

• Enhanced safety due to leak-free operation.

• Superior performance in extreme conditions.

• Reduced environmental impact by preventing fugitive emissions.

• Cost-effective over the long term due to minimal maintenance.
