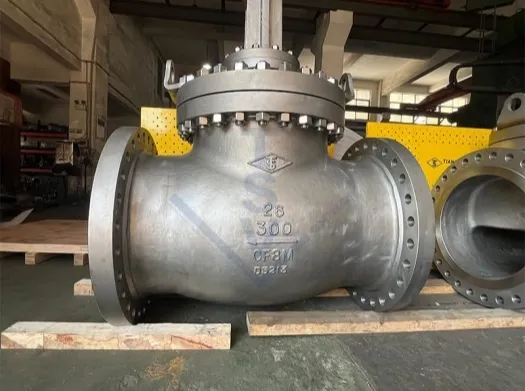

Stainless Steel 150#/300#/600# ANSI Flanged Globe Valve

Key Specifications/Special Features:

Certifications: ISO 9001, API 6D and CE
Size: DN50 to 400
Pressure: 150 to 600lbs

Materials: WCB, LCB, LCC, WC1, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M and CF8C

Standards:

Design and manufacture: BS 1873
Face to face: ASME B16.10
Cast steel globe valve end connection: ASME B 16.10
Test: API600 and BS 1873
Structure type: straight
Operated way: hand wheel, bevel gear, pneumatic and electric

Key Features:

1. Stainless Steel Construction:

   • The valve body and key components are made from high-grade stainless steel (e.g., 304, 316, or 316L), providing exceptional corrosion resistance, durability, and suitability for hygienic applications.

2. Flanged Ends:

   • The valve features flanged ends that comply with international standards (e.g., ANSI, DIN, JIS), ensuring easy installation and a secure connection to pipelines.

3. Globe Valve Design:

   • The globe valve design features a linear motion stem and disc, allowing for precise flow regulation and tight shut-off. It is ideal for applications requiring throttling or frequent operation.

4. Corrosion Resistance:

   • Stainless steel construction makes the valve highly resistant to corrosion, making it suitable for handling aggressive media such as acids, alkalis, and saltwater.

5. Hygienic and Cleanability:

   • The smooth surface finish and corrosion-resistant properties of stainless steel make the valve ideal for applications in the food, beverage, pharmaceutical, and biotechnology industries, where hygiene is critical.

6. High-Temperature Capability:

   • The valve can withstand high-temperature environments, making it suitable for steam, hot water, and other high-temperature fluids.

7. Manual or Automated Operation:

   • The valve can be operated manually using a handwheel or lever, or it can be automated with the addition of an actuator for remote control.

8. Wide Range of Sizes and Pressure Ratings:

   • Available in various sizes (e.g., DN15 to DN600) and pressure classes (e.g., PN10 to PN100, Class 150 to Class 2500), the valve can be tailored to meet specific system requirements.
