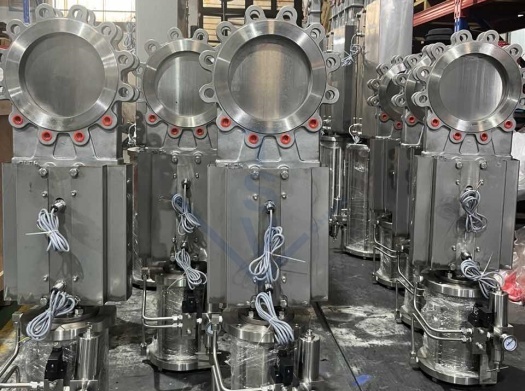

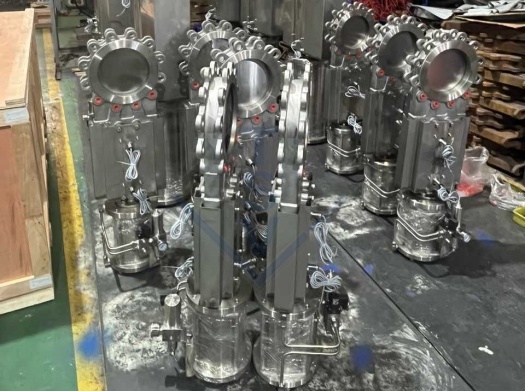

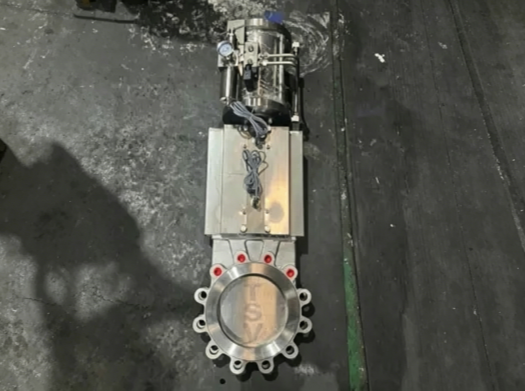

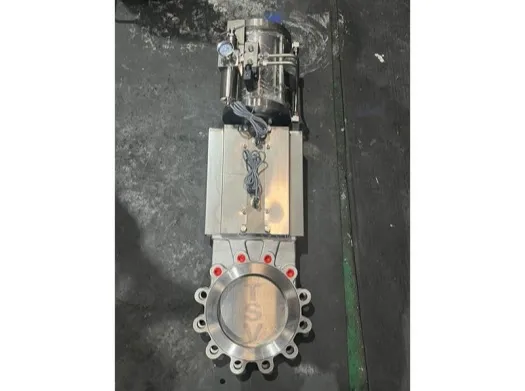

The pneumatic knife gate valve is a type of valve designed for handling fluids containing solids, slurries, or viscous media. It is widely used in industries where precise flow control and reliable shut-off are required. The valve is actuated by a pneumatic system, allowing for automated operation and integration into control systems.
Request a QuoteProduct Details
Sizes: 2″ – 48″ or DN 50 – DN 1200
Pressure Rating: Class150 or PN6 – PN16
Materials of valve body: WCB, LCB, WC6, CF8, CF3, CF8M, CF3M, 4A, etc.
Features:
Wafer lug-type body
Beveled knife on metal or resilient seats
Self-cleaning mechanism
Bi-direction design
Non-rising stem
Pillar type yoke, more room for stem nut
Design & Manufacture:
MSS SP-61, ASME 16.34
Face to Face: MSS SP-81, ASME B16.10, EN 558
Connection End: ASME B16.5, EN 1092, JIS B2220
Test : MSS SP-81
Design Features:
-
Knife Gate Design: The valve features a sharp-edged gate that cuts through thick fluids, slurries, or solids, ensuring smooth operation and minimal clogging.
-
Sealing Mechanism: The valve uses elastomeric seals or resilient seats to ensure a tight shut-off, even in harsh conditions.
-
Compact Design: The knife gate valve has a slim, lightweight design, making it suitable for applications with limited space.
-
Bi-Directional Flow: Many models are designed to handle flow in both directions, providing flexibility in installation.
