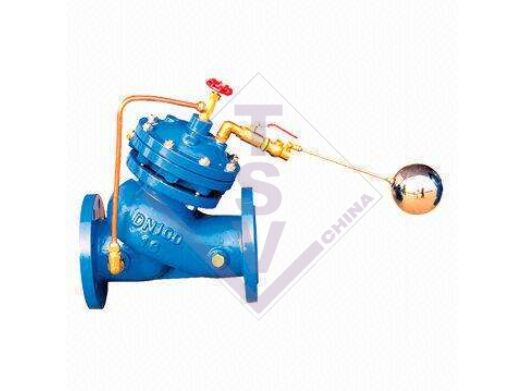

100x Remote Control Float Valve

Key Specifications:

• Size: DN40 to DN600
• PN: PN10/PN16
• Materials:
  • Body: DI, GGG50, GGG40, ASTM A536 65-45-12, QT450 and QT500
  • Disc: DI, SS304 and SS316
  • Shaft: SS410, SS420, SS304 and SS316
  • Seat: EPDM and NBR

​​​​​​​Features:

• Installed at the inlet of pool or water tower, when the water-level reach the setting level, the main valve closes by the float pilot valve’s control and stop supplying water, when the water-level comes down, the main valve opens by the float pilot valve’s control and supply water to the pool
• Control the water-level of pool precisely and is not interrupted by the pressure
• Installed freely according to the height of pool and using space
• Easy-to-maintain, to commission and to inspect
• Reliable on sealing and long lifespan
• Diaphragm type valve is reliable and it’s strength is high and it moves quickly
• Suitable for pipeline DN450 mm or less
• For DN500mm or more, piston type valve is advised to be chosen

Key Features:

1. Remote Float Mechanism:

   • Uses a float located remotely from the valve to sense water levels.

   • Allows for flexible installation and operation in hard-to-reach areas.

2. Automatic Water Level Control:

   • Automatically opens and closes to maintain a preset water level.

   • Eliminates the need for manual intervention.

3. Precision Operation:

   • Ensures accurate and reliable water level regulation.

   • Prevents overfilling or underfilling of tanks and reservoirs.
