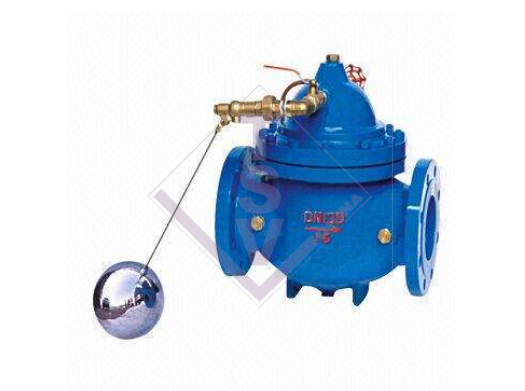

Remote Float Control Valve with ≤80°C Temperature

Key Specifications:

• Body materials: cast, ductile cast iron, carbon and stainless steel
• Keeps water line of water box by adjustment of ball pilot valve to prevent over fall of too large flow
• Automatic water supply applications of water box pool and water tower in mining industry, enterprises and high buildings
• Nominal pressure: PN 0.6, 1.0, 1.6 and 2.5mPa
• Nominal diameter:
  • Diaphragm type: DN 20 to 450mm
  • Piston type: DN 500 to 900mm
• Medium: water
• Temperature: ≤80°C
• Inspection and test: GB/T 13927 and API598
• Flange connection standards: GB/T 17241.6-1998 and GB/T 9113.1-2000

Key Features:

1. Remote Float Mechanism:

   • Uses a float located remotely from the valve to sense water levels.

   • Allows for flexible installation and operation in hard-to-reach areas.

2. Temperature Resistance:

   • Designed to operate in systems with water temperatures up to 80°C.

   • Ensures reliable performance in warm or hot water applications.

3. Automatic Water Level Control:

   • Automatically opens and closes to maintain a preset water level.

   • Eliminates the need for manual intervention.

4. Precision Operation:

   • Ensures accurate and reliable water level regulation.

   • Prevents overfilling or underfilling of tanks and reservoirs.

5. Durable Construction:

   • Made from high-quality materials resistant to corrosion, wear, and high temperatures.

   • Suitable for use in clean water, wastewater, and other non-aggressive fluids.

6. Easy Installation and Maintenance:

   • Simple to install and requires minimal maintenance.

   • Reduces operational downtime and costs.
