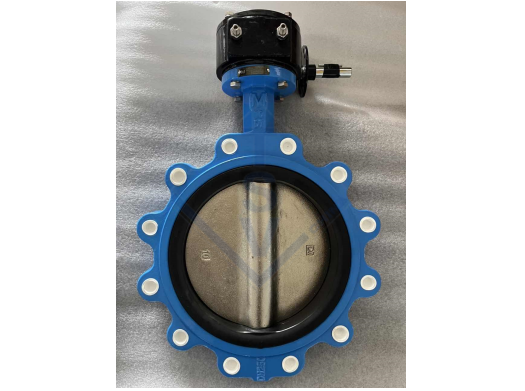

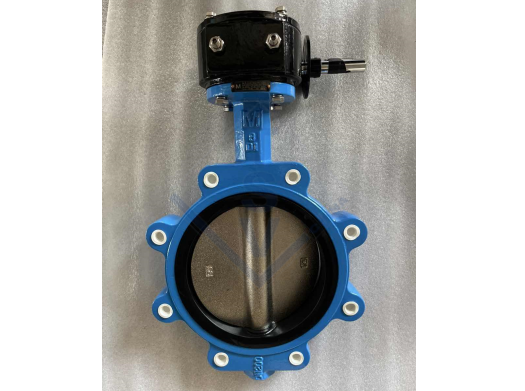

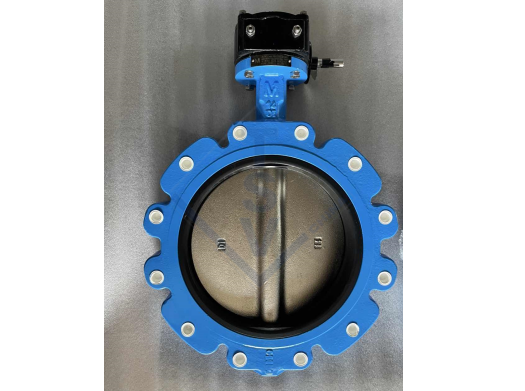

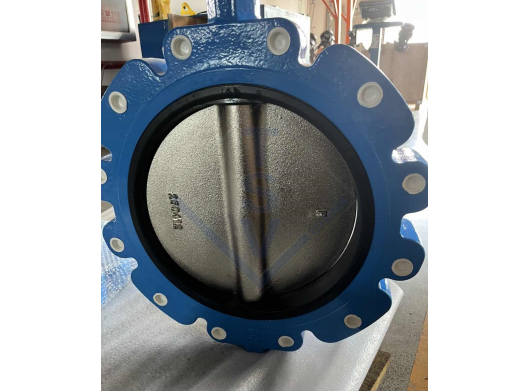

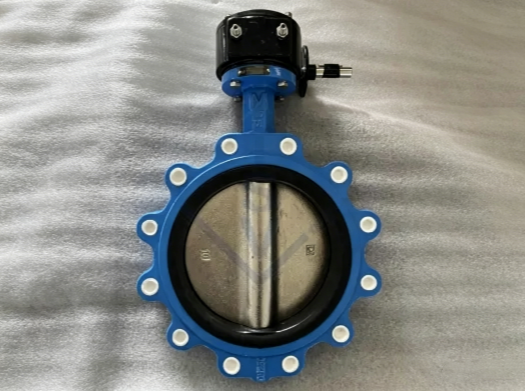

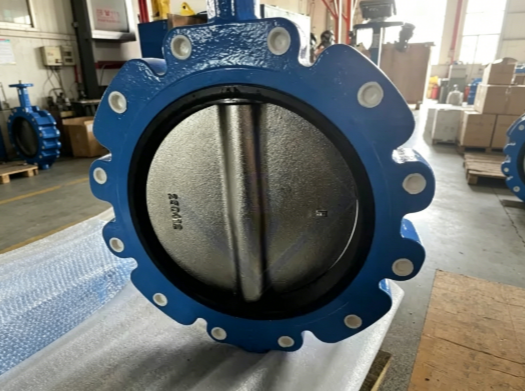

A Ductile Iron Soft Seal Butterfly Valve is a high-performance quarter-turn valve designed for reliable flow control in water, air, and mild chemical applications. It combines the strength and durability of ductile iron construction with a soft (elastomeric) seat, ensuring excellent sealing and corrosion resistance.
Request a QuoteProduct Details
Key Specifications:
-
Size: DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600;
-
Pressure: PN16 (drill hole 150LB);
-
Material: Body: A536 65-45-12, Disc&Ball: Iron, Stem: SS420, Seat: Neoprene;
-
End connection: Lug, FF.
Key Features:
-
Ductile Iron Body: Provides superior strength, impact resistance, and longevity compared to cast iron.
-
Soft Seat (Elastomer Lined): Ensures bubble-tight sealing with materials like EPDM, NBR, or Viton, suitable for varying temperatures and media.
-
Concentric Design: The disc rotates around a central shaft, offering low torque operation and smooth performance.
-

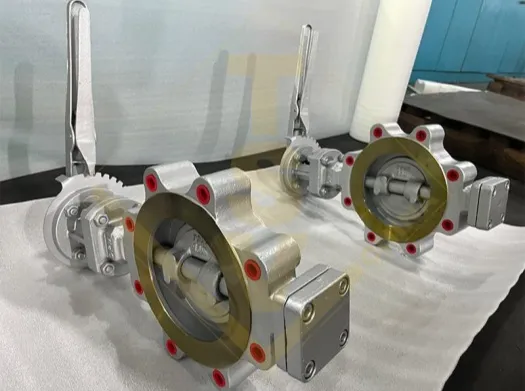

Lug or Wafer Style: Available in lug-type (for bolted flange installation) or wafer-type (for compact, flange-mounted systems).
Advantages:
Excellent Sealing Performance – Soft seats ensure zero leakage, meeting industry standards like ISO 5208, ANSI, or AWWA.
Durable & Cost-Effective – Ductile iron offers better mechanical properties than cast iron at a competitive price.
Low Maintenance & Easy Operation – Requires minimal upkeep and can be automated with actuators.
Wide Temperature & Pressure Range – Typically rated for -20°C to 120°C (-4°F to 248°F) and pressures up to 16 bar (232 psi) depending on seat material.
Versatile Applications – Used in potable water, fire protection, HVAC, and industrial processes.
