Key Specifications:
| Parameter | Specification |
|---|---|

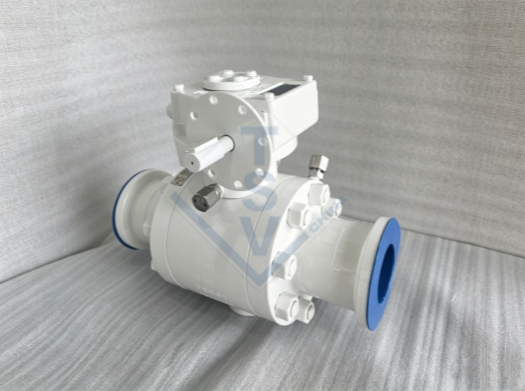

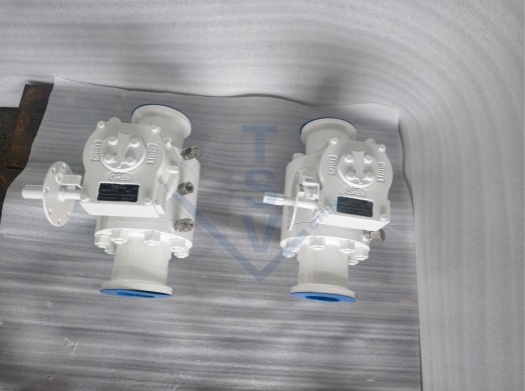

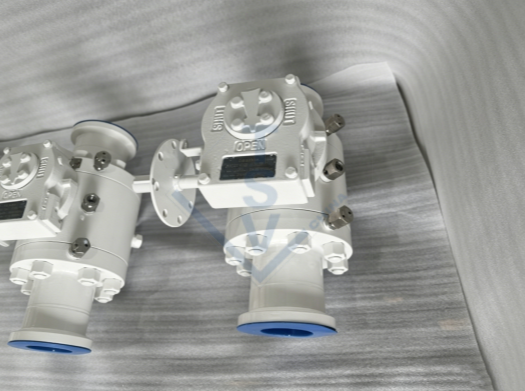

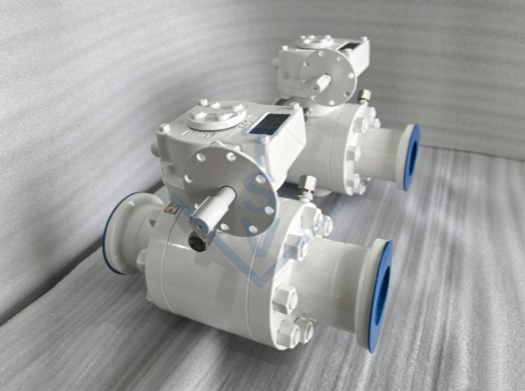

| Valve Type | Trunnion Mounted Ball Valve |
| Size | NPS 3" x 2" (Reduced Bore) |
| Pressure Class | Class 900 (ASME B16.34) |
| Body Material | ASTM A105 (Forged Carbon Steel) |
| Trim Material | ASTM A182 F316 (Stainless Steel) |
| Ball Material | A105 + ENP / F316 (optional) |
| Seat Material | RPTFE / PEEK / Nylon (soft seated) |
| End Connection | Hub End (for butt welding) |
| Operation | Lever, Gearbox, or Actuator |
| Design Standard | API 6D / API 608 / ASME B16.34 |
| Face to Face | ASME B16.10 |
| Test Standard | API 598 / API 6D |
Key Features:
1. Trunnion Mounted Design
The ball is supported by upper and lower trunnion bearings, which absorb line pressure and reduce operating torque . This design is ideal for high-pressure applications, as it prevents the ball from shifting under pressure and ensures smooth operation with smaller actuators .
2. Anti-Static Device
A conductive path is provided between the ball, stem, and body to prevent electrostatic charge buildup, ensuring safe operation in flammable service .
3. Anti-Blowout Stem
The stem is designed with an anti-blowout feature, preventing accidental ejection under high pressure .
4. Fire Safe Design
The valve complies with API 607 / API 6FA fire-safe standards, ensuring secondary metal-to-metal sealing in the event of a fire .
Typical Applications
-
Oil & Gas Pipelines – High-pressure transmission and distribution
-
Refineries & Petrochemical Plants – Process isolation and flow control
-
Power Generation – Boiler feed water and steam systems
-
Chemical Processing – Corrosive media handling (with F316 trim)
